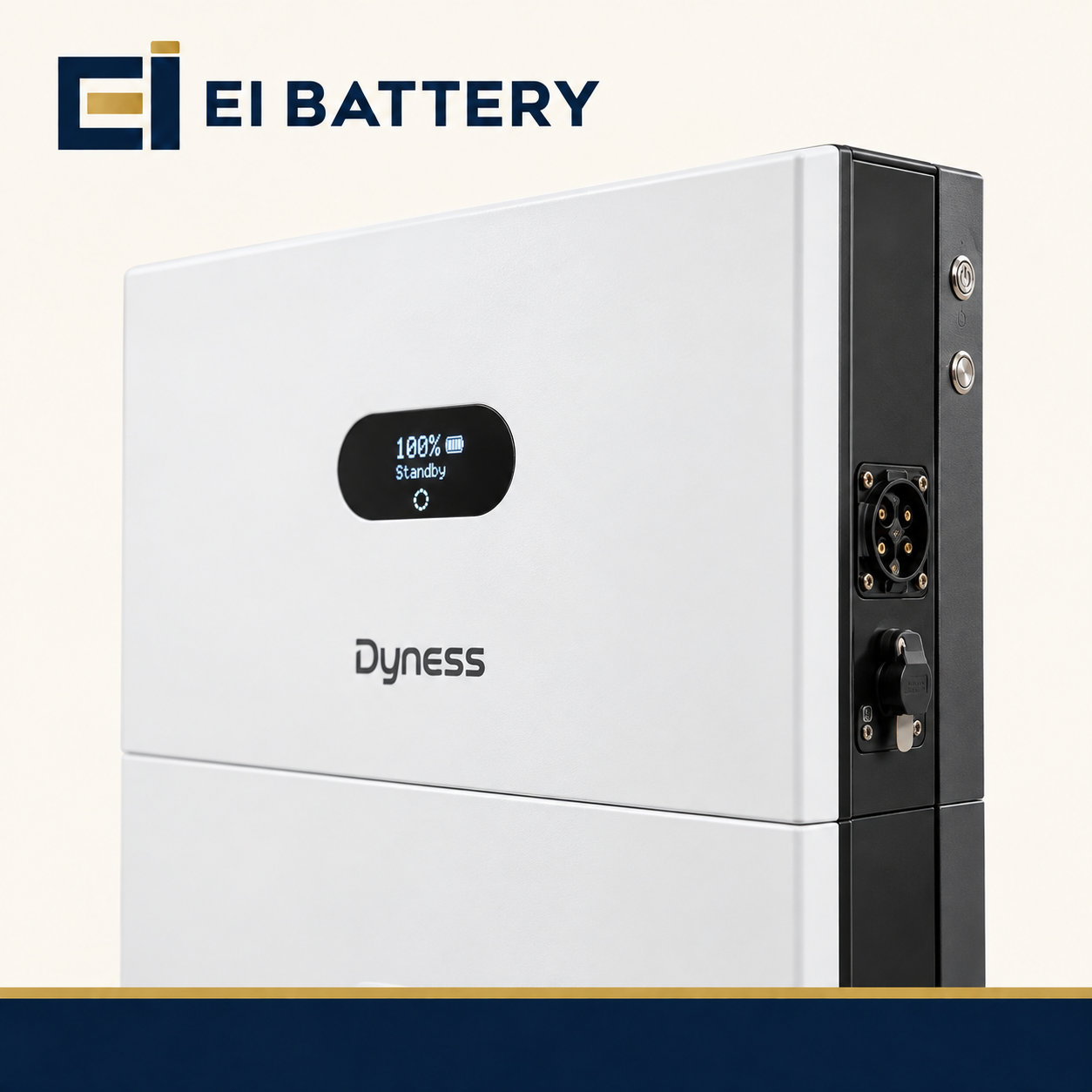

Powerbox G2
Manufacturer reference: Dyness Powerbox G2
A low-voltage (51.2 V) LiFePO4 residential battery with a slim 165 mm profile, wall- or floor-mounted, and scalable in parallel. Final configuration and pricing are confirmed at quotation.
Wholesale highlights
- Slim 6.5-inch (165 mm) design for flexible wall or floor mounting
- Scales in parallel — from 10.24 kWh up to 512 kWh
- 1C discharge with a built-in aerosol fire extinguisher and IP66 rating
Specifications
| Battery chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal energy (per unit) | 10.24 kWh (9.728 kWh usable) |
| Nominal capacity | 200 Ah · 51.2 V |
| Scalable (parallel) | Up to 50 units — 10.24 to 512 kWh |
| Discharge rate | 1C — max 10.24 kW continuous, 200 A |
| Ingress protection | IP66 |
| Communications | CAN / RS485, built-in Wi-Fi, app OTA |
| Temperature | Operates to −20 °C with self-heating (optional) |
| Dimensions / weight | 710 × 165 × 640 mm · approx. 99.7 kg |
| Cycle life (datasheet) | ≥ 8,000 cycles / 10 years |
Specifications are quoted from the official Dyness Powerbox G2 datasheet (AU, v20250812). Exact supplied configuration and pricing are confirmed at quotation.
What's included in the kit
Supplied as a complete kit — battery, matched hybrid inverter and solar panels.
- • Dyness Powerbox G2 — low-voltage LiFePO4 battery
- • Solis S6-EH3P(8–15)K02-NV-YD-L-AU hybrid inverter
- • Risen 605–630 W solar panels
Roof mounting, PV/AC cable, isolation & protection, earthing, metering/CT and commissioning are sized and supplied by your installer for the site.
+ GST per unit (wholesale, ex GST).
Request a trade quote 0414 662 445Trade customers only. Eligibility is checked by our sales team. Supply-only — installation is completed by your business.
Product documents
- Dyness Powerbox G2 datasheet (AU)Datasheet · PDF
- Dyness Powerbox G2 warranty termsWarranty · PDF
- Solis S6-EH3P(8–15)K hybrid inverter flyer (AU)Datasheet · PDF
- Solis S6-EH3P(8–15)K inverter manual (AU)User manual · PDF
- Dyness Powerbox G2 user manualUser manual · PDF
- Risen RSM132-11 610–635 W panel datasheet (AU, 2026H1)Datasheet · PDF
- Risen 25-year rooftop warranty (AU/NZ)Warranty · PDF
- Risen N-type dual-glass module warranty (2026)Warranty · PDF
Documentation supplied by the manufacturer, Dyness.
Warranty
10-year product warranty per the Dyness Powerbox G2 (AU) datasheet (≥8,000 cycles). Full warranty terms and conditions are confirmed with your quote.
Proven manufacturer
EUPD Research TOP Brand PV Storage — awarded to Dyness across 10+ international markets from 2022 to 2026.
Recognition awarded to the manufacturer, Dyness. EI Battery Solutions is a wholesale supplier of Dyness equipment.
